Reviving Earth Covered Magazine (ECM) Structures: Strengthening and Repair
Earth Covered Magazine (ECM) structures play a crucial role as secure storage facilities for ammunition and explosives, extensively used by the Department of Defense and the U.S. military. While these structures weren't originally designed to endure the aftermath of an accidental explosion, a well-maintained ECM can significantly reduce the impact of a blast caused by small amounts of ammunition or explosives. In this specific case, the earth-covered magazine bunker experienced cracks starting in its floor due to foundation movement and poor sub-grade conditions. These cracks gradually spread to the walls and ceiling, causing leaks and concrete spalling. Given the volatile materials stored inside, it became essential to restore the bunker’s structural integrity.
The chosen solution for repairing this critical magazine bunker was HJ3's CarbonSeal™ carbon fiber strengthening system. The repair work began with creating perpendicular saw cuts across all cracks in the floor and walls. HJ3's patented carbon laminate strips were meticulously inserted into each saw cut, secured in place using epoxy injection. The entire interior of the bunker underwent a thorough cleaning via abrasive blasting, eliminating any delaminated concrete and dust. A cementitious grout was then applied to restore the bunker’s uniform surface. Finally, the CarbonSeal™ carbon fiber was saturated and installed along the cracked walls and ceiling.
Surprisingly, the magazine bunker repair project was completed in just one day. Choosing to repair the cracked bunker instead of replacing it led to significant cost savings while also preventing the waste of valuable resources tied to producing new concrete and steel. This eco-friendly approach kept over 4 tons of steel and concrete out of landfills, conserved nearly 250,000 gallons of water, saved 33,000 kWh of energy, and reduced over 8 tons of carbon dioxide emissions from entering the atmosphere.
If you’re thinking about using the HJ3 CarbonSeal system for your own ECM bunker or any other deteriorating concrete structure, we invite you to reach out to us today at [contact information].

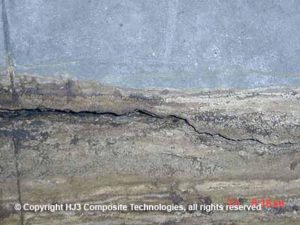

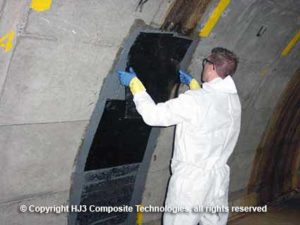

Below are some images showcasing the extensive cracking that threatened the structural integrity of the bunker, followed by photos of the CarbonSeal carbon fiber being applied to the prepared walls.
This innovative approach not only ensured the safety of the stored materials but also demonstrated the importance of sustainable practices in infrastructure maintenance. By choosing effective solutions like CarbonSeal™, we can preserve our environment while safeguarding critical assets. Let us know if you need assistance with similar projects—our team is ready to help!
